Reader-to-machine connectivity
RFID PLC integration that turns identity into a controlled process event
Connect industrial RFID readers to PLC, HMI, SCADA, MES or line-control systems with defined handshakes, fault handling and acceptance logic.
PLC handshakesIndustrial networksEdge filteringCommissioned logic
Quick answer
How does an RFID reader connect to a PLC?
An industrial RFID reader can exchange identity, status and control data with a PLC through the interfaces supported by both devices. The connection may be direct through digital I/O, serial communications or an industrial network, or indirect through an interface block, edge controller or middleware. The important design step is to define the handshake: when to read, what counts as valid, which identifier is returned, how timeout and multiple-tag conditions are handled, and what the PLC should do next.
Technical content reviewed

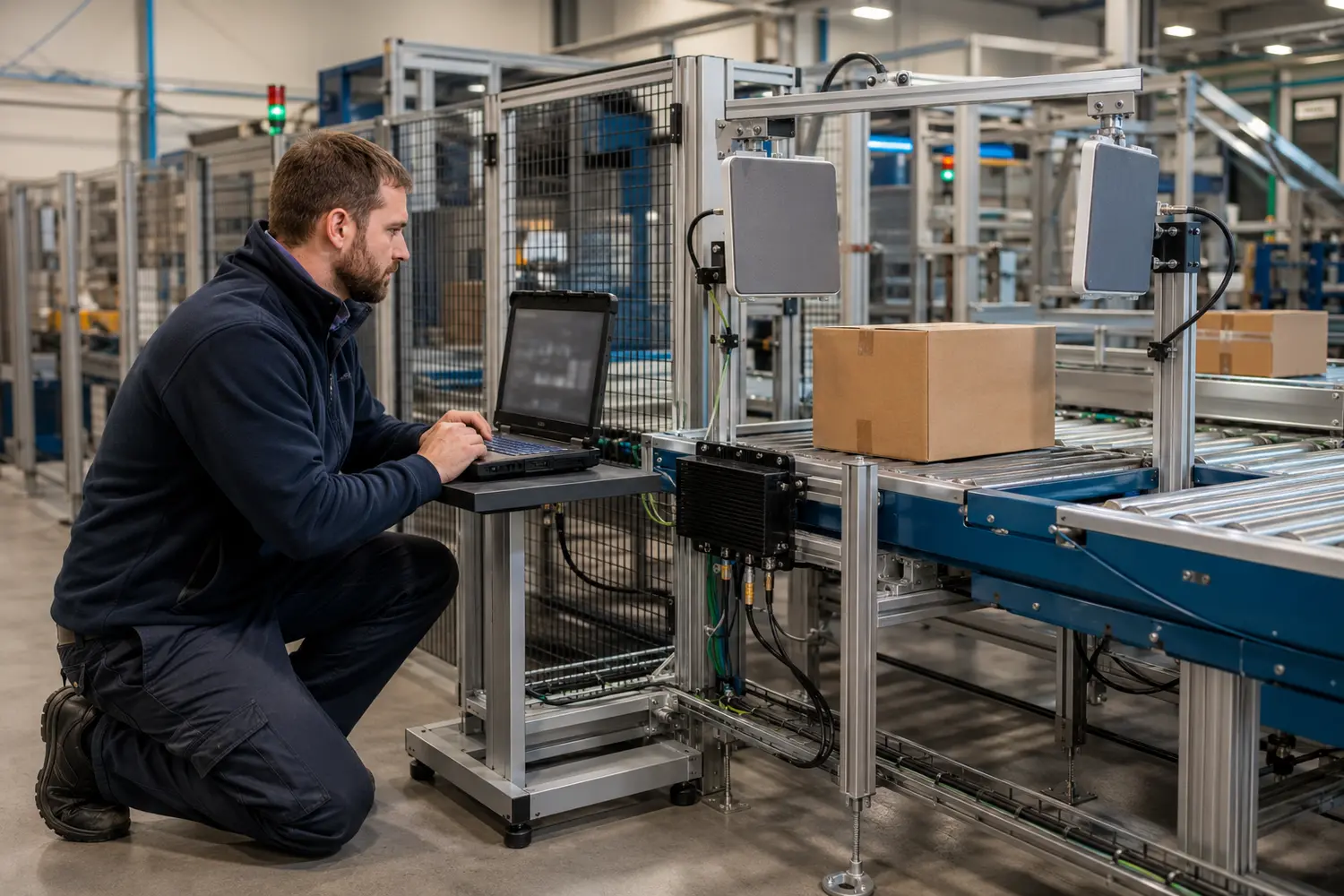

Application overview
Design the transaction before selecting the protocol
The PLC rarely needs every raw tag observation. It normally needs one dependable result associated with a known station, trigger and production state: correct carrier present, wrong tool detected, pallet identity received, operation authorised or read failed.
Oxford Traceability defines the reader settings, antenna zone, sensor trigger, event filtering and PLC data exchange together. This prevents common faults such as stale identifiers, duplicate reads, adjacent-station cross-reads and a machine continuing when the host response is missing.
Integration scope
Reader, controls and data flow specified together
- Digital input and output handshakes
- Serial and Ethernet reader interfaces
- Supported PROFINET or EtherNet/IP connectivity
- IO-Link or gateway architectures
- OPC UA and AutoID data models where supported
- Reader triggers and presence sensors
- Multiple-tag, no-read and timeout logic
- HMI status, diagnostics and operator recovery
- MES, database or API event hand-off
- Offline, retry and reconciliation behaviour
Typical controls outcomes
Where PLC-connected RFID creates value
Recipe selection
Use the validated identifier to request or verify the correct recipe, order or process parameters.
Routing and divert
Associate a pallet, tote or unit with the correct downstream lane, operation or reject action.
Genealogy event
Pass identity, station, result and timestamp to MES, traceability or quality records.
Connectivity guide
Common RFID-to-PLC architectures
Availability depends on the selected reader, interface block and control platform.
| Architecture | Suitable for | PLC receives | Design point |
|---|---|---|---|
| Discrete I/O | Simple pass/fail or trigger/result exchange | Status bits rather than full tag data | Limited diagnostics and identifier handling |
| Direct industrial network | Reader or interface with supported PLC protocol | Identifier, status, commands and diagnostics | Data mapping, byte order and state machine |
| Edge controller or gateway | Multiple readers or mixed interfaces | Filtered, contextual station results | Ownership of buffering and business rules |
| Middleware with PLC link | RFID events shared with MES, WMS or databases | Process result while software owns event history | Resilience, timing and system-of-record rules |
Controls engineering
A reliable reader handshake has defined states
The process should remain understandable during normal reads, faults, restarts and communications loss.
01
Trigger and context
The PLC or sensor establishes which product, station and time window the reader result belongs to.
02
Result and acknowledgement
Valid, no-read, multiple-tag and fault outcomes are explicit, acknowledged and cleared before the next cycle.
03
Recovery and diagnostics
HMI messages, retries, bypass authority, logs and restart behaviour help operators recover without creating hidden data gaps.
Frequently asked
RFID and PLC integration questions
Share your PLC type, preferred network, cycle time and the required machine response for a focused review.
Ask a controls questionCan an RFID reader connect directly to a PLC?+
Yes, when the selected reader or interface supports a communication method the PLC can use. Depending on the hardware, this may be discrete I/O, serial data, TCP/IP, PROFINET, EtherNet/IP, IO-Link, OPC UA or a gateway or middleware layer.
Can RFID stop a machine when the wrong item is present?+
A validated RFID result can inform the PLC and the PLC can control the normal process response. RFID identification should not be treated as a safety function; any safety-related stop or interlock must use an appropriate safety design and components.
How are duplicate RFID reads handled in a PLC system?+
The design normally combines a defined trigger window, antenna zoning, reader filtering and event logic. The PLC or middleware should receive one contextual result rather than an uncontrolled stream of repeated tag observations.
Can RFID be retrofitted to an existing production machine?+
Often, yes. A retrofit assessment checks available space, guarding, cycle time, electrical and network interfaces, controls ownership, tag placement and the safe method for mounting and commissioning the reader.
What happens if the network or MES is unavailable?+
The required behaviour is agreed during design. Options include local PLC decisions, reader or edge buffering, retries, controlled offline operation, alarms and reconciliation after communications return.
